1.Product Introduction

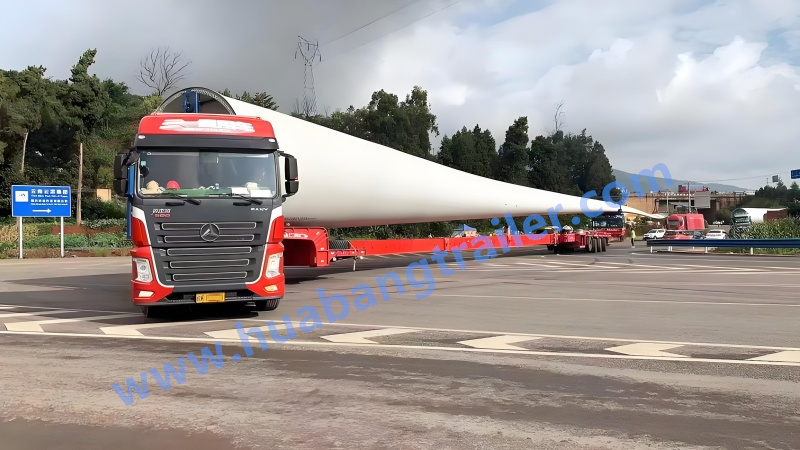

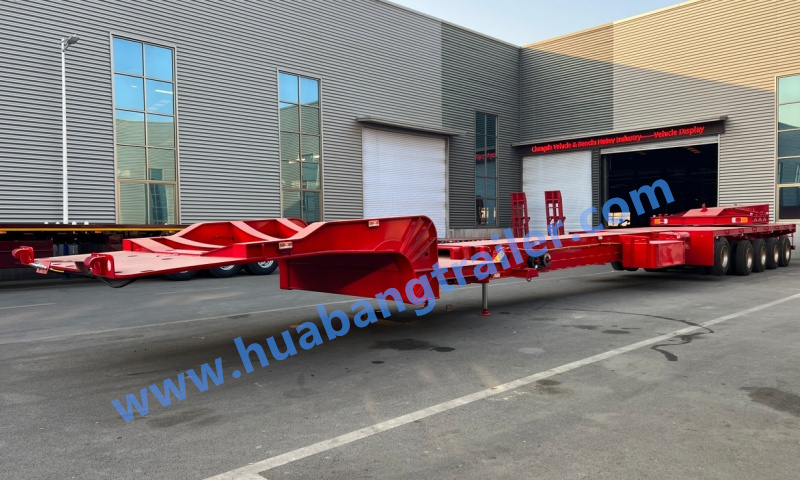

Extendable wind blade trailer: For normal transporting on the road. depends on different length of wind blades, trailer could make 3 ~ 6 steering axles, wind blade trailer could be made 15m-28m before extendable, and extend to 45m-78mters during wind blades semi trailer working.
2.Product Parameter
| Name： | Windmill blade trailer | Tare weight： | Around 34.5T |
| Overall Size(mm): | 24150 (closed length)* 3000 * 1750 | Axle: | 13T*6pcs |
| Main beam(mm) | Outside beam: Height 530，16* (8+8) *16
Middle beam: 16 * (8+8)*16 Front & rear beam: 18*(10+10)*18 |
Spring leaf: | 10pcs thicker *10 sets |
| Main beam material | Q550D | Front axles | Air suspension with lifting |
| Side beam | 25# channel steel | Rim | 9.0#14/7 * 24pcs |
| King pin | 90# | Tyre： | 12R22.5 * 24pcs |
| Suspension | 5 steering axles with mechanical
Suspension; Front axles with air suspension and lifting |
Brake chamber | 12 doubles |
| Cross beam | 12# channel steel | Emergency valve | KANGJIAN brand |
| Floor | 2.5mm diamond plate | ||
| Power station | Single cylinder, 18hp diesel engine | Landing gear | Fuwa 28T (single action) + one hydraulic landing gear |

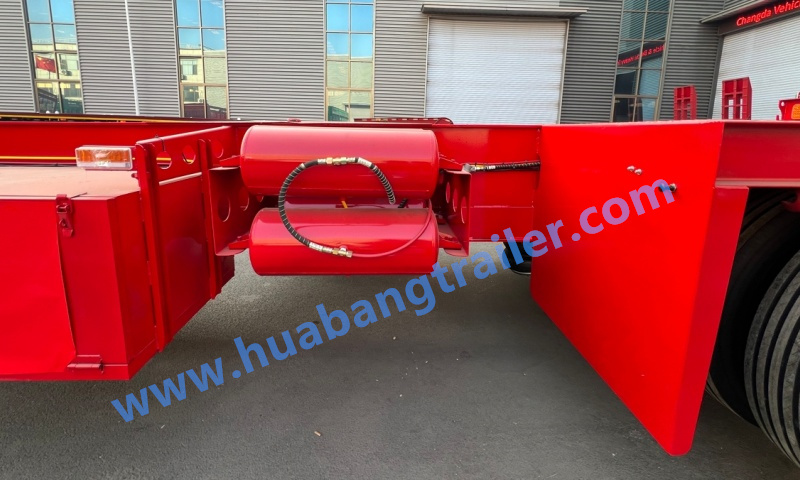

| Steering type of rear 5 axles | Axle wheel steering | Air tank | 4 pcs |
| Steering cylinder | Double cylinder | Tool box | 3 pcs |
| Steering control： | Manual valve + remote control | Spare wheel carrier | 1 pc |
| Draw plate | Thickness 12mm | Shaft head wrench | 1 pc |
| Electric system | 24V with LED light, 7 way socket SAE standard, 7-core waterproof wiring harness. | Paint | Sand blast once for rust prevention, twice for topcoat. |
| Payload： | 60T (under closed status) | ||
| Remark：It can be extended 38 meters, total length 62 meters. It can be extended in front, middle and rear area. | |||
The above data is for reference only, you can choose the axis model, or the hydraulic axis model, according to different needs, choose different configurations.

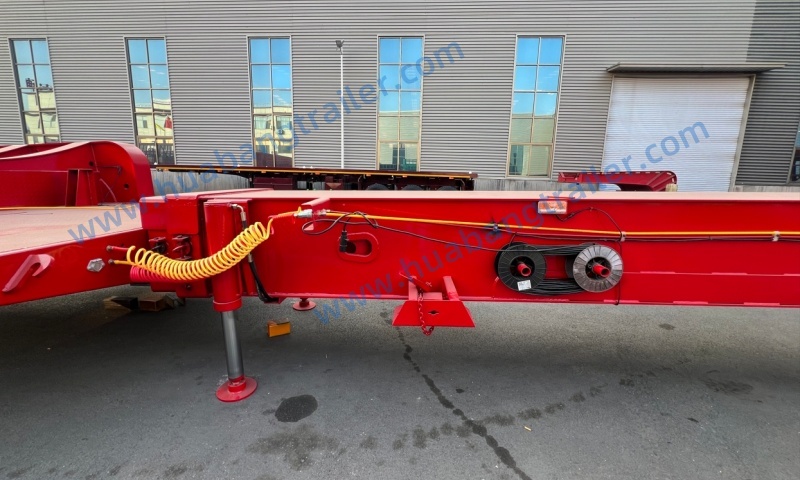

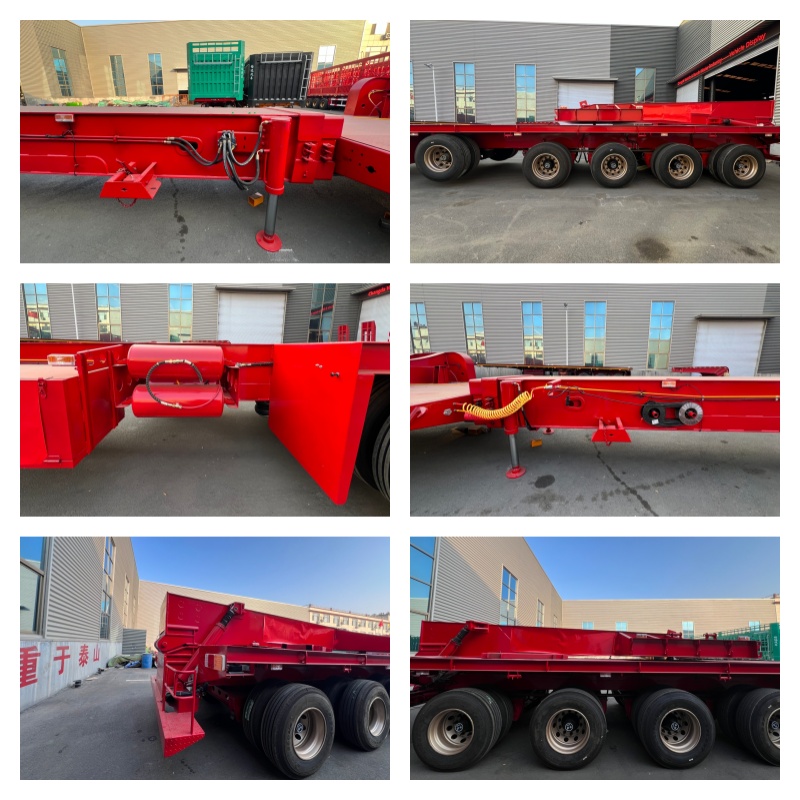

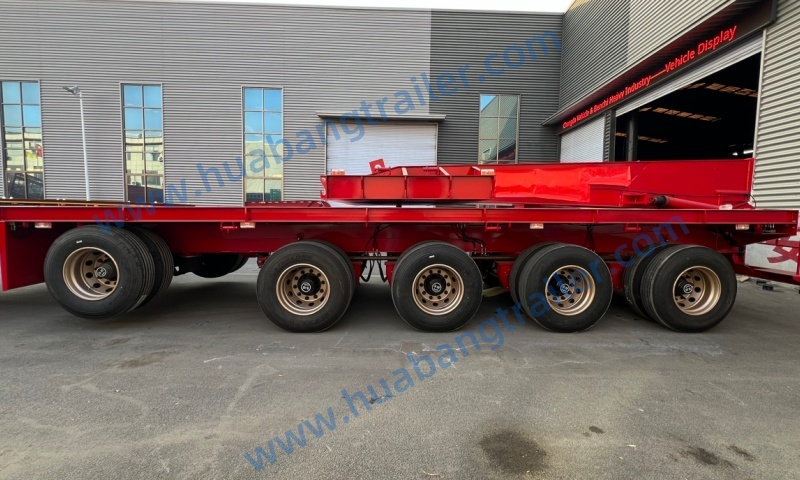

3.Product Details
4.Wind turbine blade transport trailer type:
Huabang company has 2 type of trailers to transport wind turbine blades.
- Extendable wind blade trailer:For normal transporting on the road. depends on different length of wind blades, trailer could make 3 ~ 6 steering axles, wind blade trailer could be made 15m-28m before extendable, and extend to 45m-78mters during wind blades semi trailer working.
- Wind blade adapter For mountain region transporting
Comparing with telescopic extension wind turbine blade trailer, the rotation wind turbine blade adapter can raise, swing, and rotate the blades. It can avoid various obstacles such as trees, mountains, and wires on the way, effectively solve the problem of wind power blade transportation in mountain areas, and directly grasp the wind blades by the hydraulic power station .Hold in mid-air to transport a longer wind blade(more than 75meters) with a shorter length. In the case of high wind, the blades can rotate 360 degrees to avoid the wind, and participate in the balance through the counterweight to ensure transportation safety.

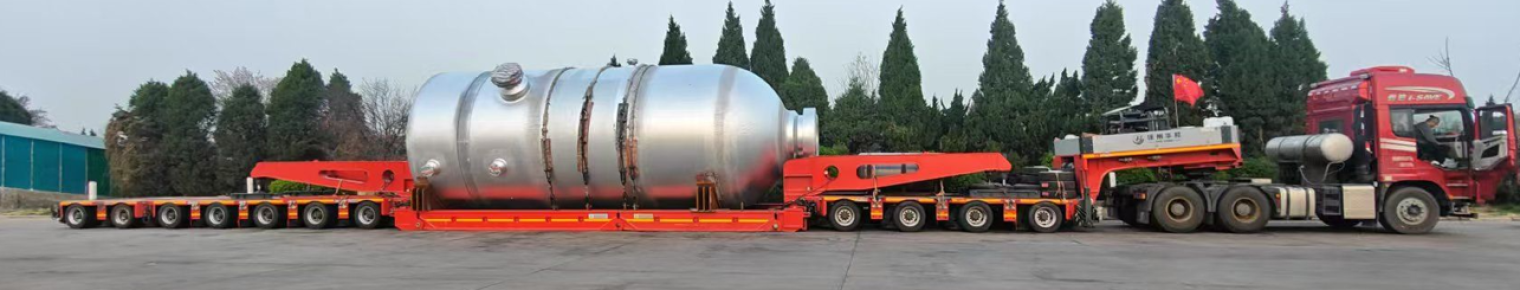

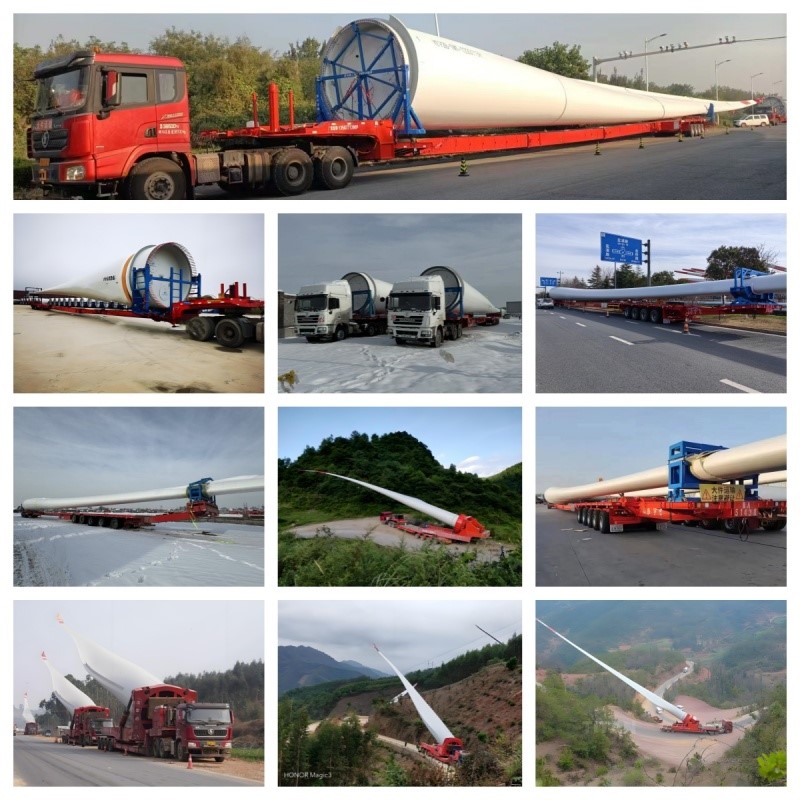

5.Classic delivery case or Application

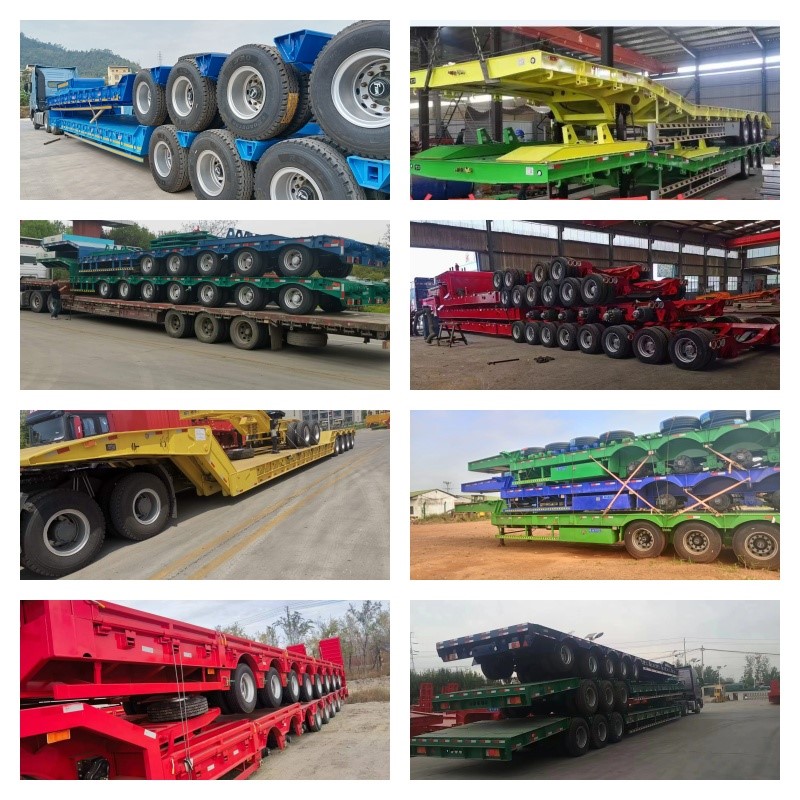

6.Packaging and delivery
- Liangyu trailer will be waxed before it is packed to prevent seawater from corroding the trailer surface.
- We will choose the most suitable transportation method for customers and reduce the transportation costs of customers.
- The trailer can be shipped by land carriage for China’s neighboring countries, or sea transportation by RORO or by Bulk for oversea countries.
n recent years, the sales of Liangyu trailer in Central Asia, the Middle East, Africa and South America have gradually increased, and the trailers are deeply trusted and supported by local customers. Every year, we welcome customers from all over the world to visit and renew our contracts.
7.FAQ
What are our advantages compared with other manufacturers
Competitive Price — We are the leading semi-trailer manufacturer in China, the price is the factory price, no middleman transfer difference.
Quick Response— Our team is consisted of a group of diligent and enterprising people, working 24/7 to respond client inquiries and questions all the time.
Fast delivery — Normally it will take about 15-20 days for production the ordered trailers.
High Quality—–Every process of choose material, welding, sand blasting, painting with detailed inspection, accept 100% inspection during production and after production.
Which payment terms can we accept?
Normally we can work on T/T term or L/C term.
On T/T term, 30% down payment is required in advance, 70% balance shall be settled before delivery, or against the copy of original B/L for regular client.
On L/C term, normally need 30% down payment by T/T, 70% by L/C at sight.
How long will our price be valid?
Price with long valid time — Basically, our price remains stable through the year. We only adjust our price based on two situations: (1)The rate of USD:RMB varies significantly according to the international currency exchange rates. (2) The increasing labor cost and raw material cost.
What logistics ways we can work for shipment?
We can ship all trailer by various transportation tools.
* For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania etc, either by container or RoRo/Bulk Shipment.
* For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can ship trucks by road or railway.
