Goldhofer Hydraulic Axles Modular Trailer HB G 1
The hydraulic module trailer is a special vehicle designed for heavy-duty transportation. It combines modular structure with hydraulic system technology and is suitable for the transportation of oversized and overweight goods.

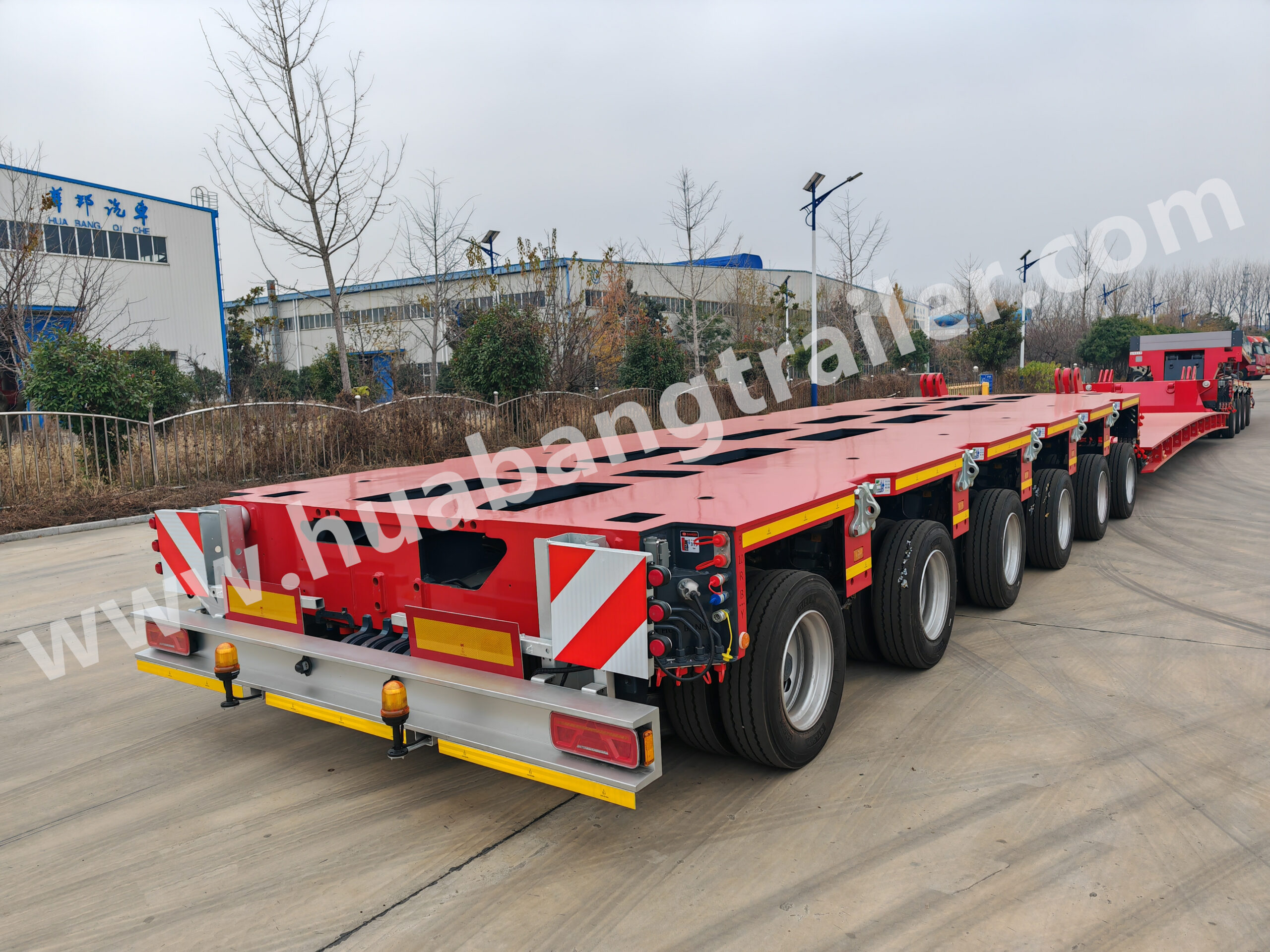

Production Pictures
Specifications Sheet for 6 Axles Modular Trailer
| Axis number | 6 | |||
| Speed（km/h） | 0.5 | 5 | 50 | 80 |
| Max. total mass（t） | 270 | 219.6 | 120 | 98.4 |
| Load per axis（t） | 45 | 36.6 | 20 | 16.4 |
| Total length（mm） | 9000 | |||
| Total width（mm） | 2990 | |||
| Height（mm） | 1175±300 | |||
| Wheelbase（mm） | 1500 | |||
| Wheel track（mm） | 1800/735 | |||
| Tyre spec. | 215/75R17.5 | |||
| Rim spec. | 6.00-17.5 | |||
| Tyre number | 48 | |||
| Wheel angle | 55° | |||
| Turning radius（mm） | 2030（Inside）、 6650（Outside） | |||
| Working temperature | -40℃~+55℃ | |||
Drawing for 6 Axles Modular Trailer
Advantages of Huabang Modular Trailers
- Modular design
- Flexible configuration
The hydraulic module semi-trailer adopts a modular design, which can adapt to different load requirements by increasing or decreasing the number of axles or adjusting the frame length.
- Multi-scenario adaptation
Depending on the different transport objects, modular trailers can be divided into flatbed, low-flatbed, retractable and other types to meet the diversified transportation needs of ship modules, bridge components, large machinery, etc.
- Hydraulic system technology
- Hydraulic suspension and steering
The hydraulic lifting and steering suspension system is used to improve vehicle stability and maneuverability, and enhance stability when transporting tall objects
- Hydraulic outriggers and supports
Some models are equipped with a hydraulic outrigger system, which drives the hydraulic pump through the on-board battery to achieve rapid lifting of the vehicle body and ensure stability during loading, unloading or docking.
- High load and durability
- Ultra-large load capacity
The load range of a typical hydraulic module semi-trailer ranges from 100 tons to thousands of tons.
- High-strength materials
The body is made of high-strength wear-resistant steel or special steel, and the key load-bearing areas are additionally reinforced to ensure durability under harsh working conditions
- Intelligent and safety features
- Intelligent control
Some high-end models integrate intelligent anti-collision systems, hydraulic main tank control and energy recovery technology.
- Safety protection
Equipped with ABS anti-lock braking system, multi-stage braking and rear protection device.
- Wide application areas
Mainly used in shipbuilding, petrochemical, power engineering, bridge construction and other scenarios, it can transport submarine modules, drilling platforms, high-speed rail box girders and other super-large components
Learn more about Huabang Trailer
Huabang Trailer is a modern vehicle manufacturing enterprise integrating R&D and production of special transport vehicles and equipment. Its R&D and manufactured hydraulic module semi-trailers have reached the domestic leading level and are the benchmark of the industry.
Huabang Hydraulic module trailer application
