Heavy Haulage Trailers for Equipment and Heavy Cargo Transport

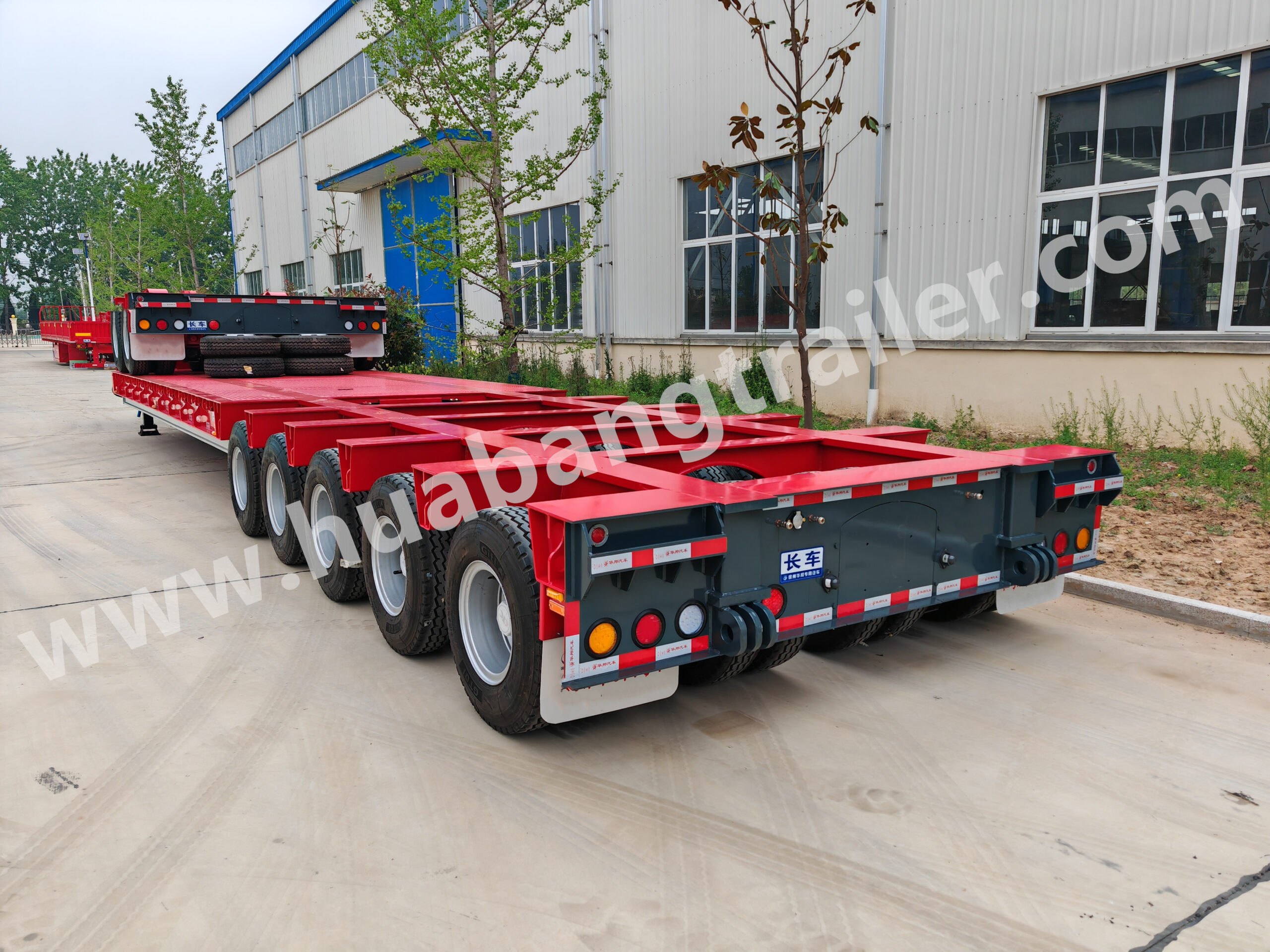

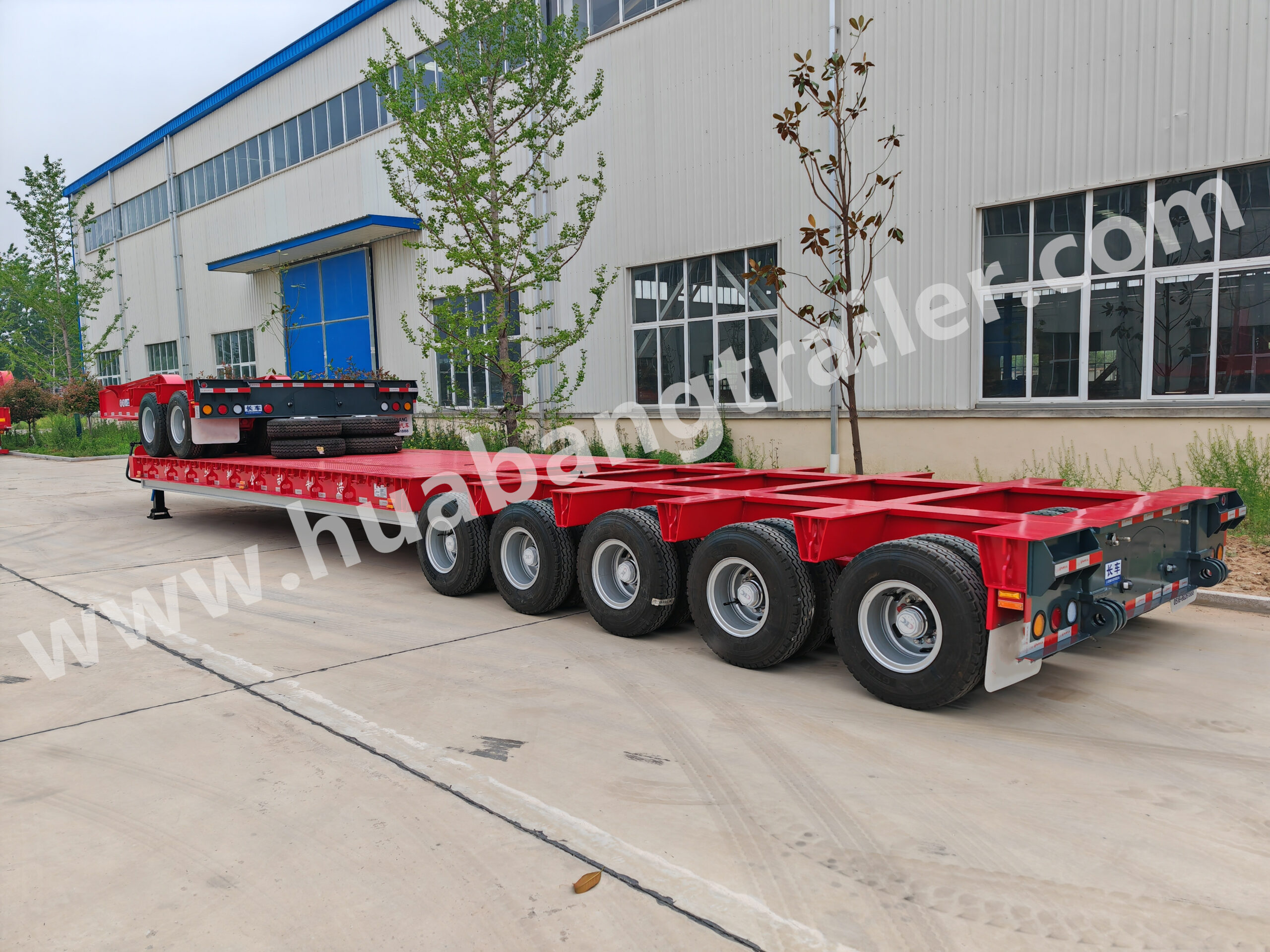

Huabang 10 Axles five lines low-bed semi-trailer is a conventional semi-trailer designed specifically for transporting heavy and large-volume cargo. It disperses the load through a multi-axle design to meet the needs of large-tonnage transportation and is widely used in road logistics, construction machinery transportation, large equipment handling and other fields.
Product Description:
Carrying capacity
- Total load: The eight-axle design can carry 80-120 tons (depending on the wheelbase distribution and tire configuration).
- Cargo platform size: The length is usually 12-16 meters, the width is 3-3.5 meters, and some can be expanded to 4 meters (extra-wide permit is required).
Supporting equipment

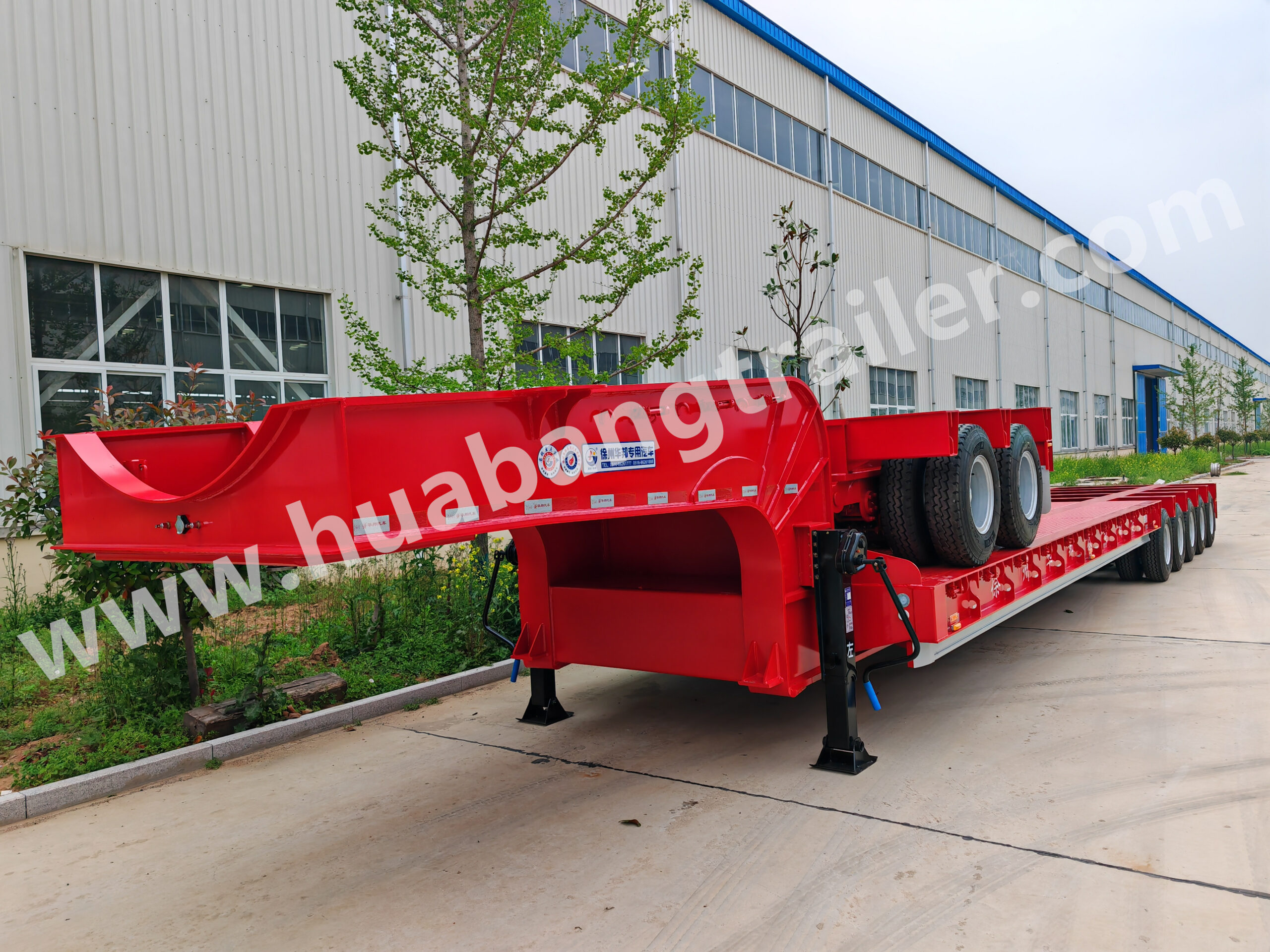

- Gooseneck structure: The gooseneck part connecting the tractor adopts a sinking design to further reduce the height of the cargo platform.
- Auxiliary devices: Optional hydraulic ladders, outriggers, rope tighteners, etc. are available to facilitate loading, unloading and securing of goods.

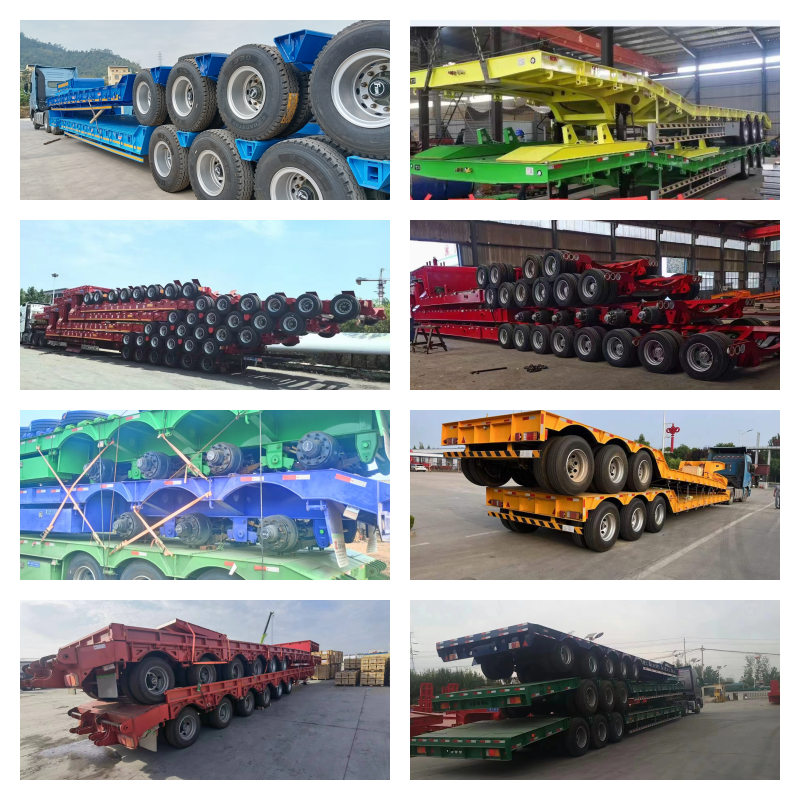

Production Pictures
Specifications Sheet
| Name： | 5 Lines 10Axles Lowbed Semi Trailer | Tare Weight: | Around：16.5T | ||
| Spec.: | Size:14820*3300*mm | Axle: | 5 lines 10 axles, | ||
| Main beam: | Height: 540mm, Top flange: 16mm, under flange: 25mm, middle flange:14mm, material: Q550D | Leaf spring: | ~ | ||
| Side beam: | Height: 280mm, Top flange: 8mm, under flange: 8mm, middle flange : 8mm， | Brake chamber： | Standard | ||
| Cross beam: | 5mm，500mm, Bending steel 5mm, the space is 500mm | Rim： | 7.5# * 50pcs + 2pcs | ||
| King pin: | 90# | Tyre： | Double coin 275/70R22.5 * 32pcs + 2pcs | ||
| Suspension: | Mechanical suspension (100T) | Air tanker： | 3 pcs | ||
| Floor: | Diamond plate, both sides plate: 4mm, middle plate: 3mm | Emergency valve： | WABCO | ||
| Landing gear： | 28T, Fuwa brand, | Gas circuit： | &12 red yellow nylon tube | ||
| Draw plate： | thickness: 20mm | Tool box: | 2pcs | ||
| Tire carrier： | 2 pcs | Wire tightener： | Per customer’s request. Please sea below picture. | ||
| Leg crank： | 1 pair | Shaft head wrench | 1 pc | ||
| Electric system： | Voltage: 24V, socket: in line with the Chinese national standard seven-core socket, LED lights, wiring harness: 7-core waterproof wiring harness. | ||||
| Payload： | 120T | Paint： | One anti-rust paint, one polyurethane, wax spray | ||

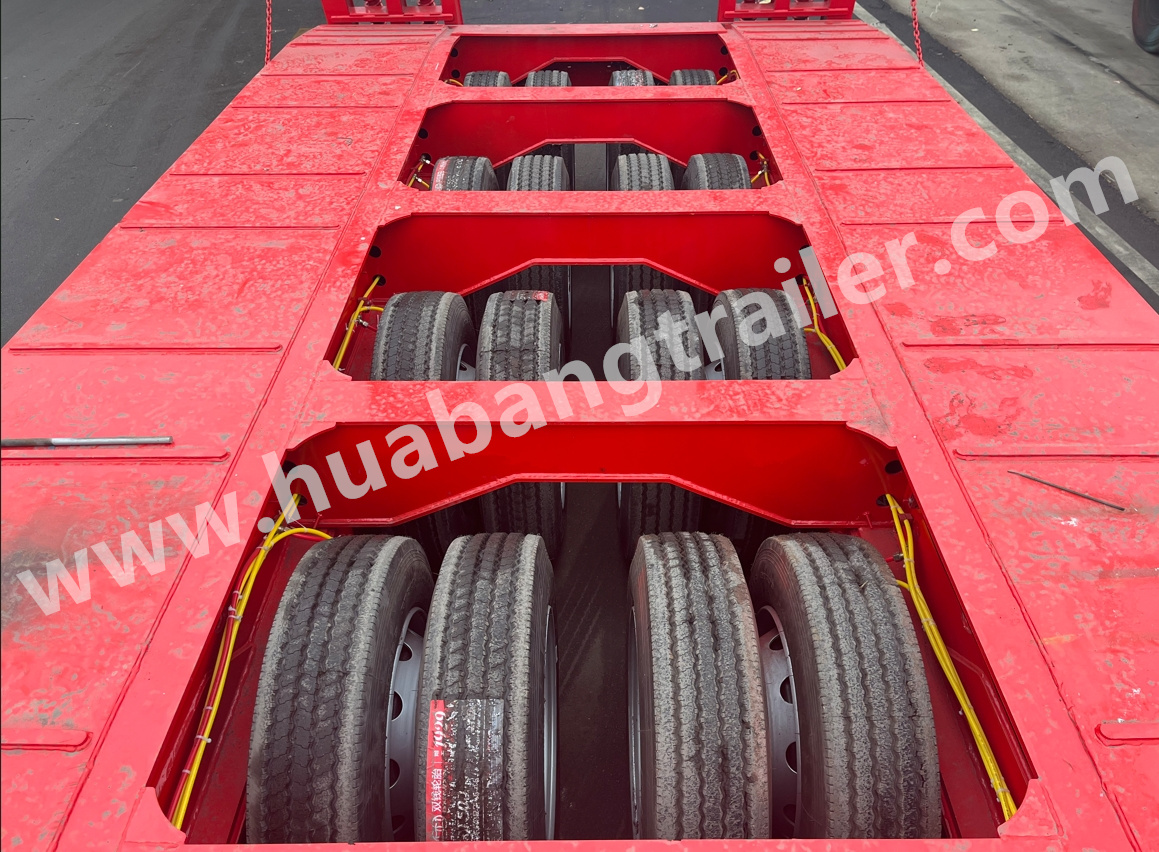

| Note: The work plate length is 11m, the height of deck is 1060mm. Length of gooseneck is 3.5 meters. Ladder width is 80cm, double spring double plate, side beam welding rib, plate thickness is 16mm, the tires in the middle are not covering, the tyres 11pcs outrigger for each side. The outrigger plays an auxiliary role and does not support concentrated load-bearing. | |||||
Advantages of Huabang Heavy Haulage Trailers
- Large tonnage load
Multi-axle design disperses the load to avoid single-axle overload, suitable for transporting heavy equipment such as excavators, rollers, transformers, wind turbine towers, etc.
- Advantages of low flatbed
Easy loading and unloading: The cargo platform is low, and large machinery can be loaded and unloaded directly through ladders or slopes, reducing the need for lifting. The low center of gravity design improves driving stability and is suitable for long-distance road transportation.
- Flexibility and adaptability
Adjustable number of axles: Some models support increasing or decreasing the number of axles (such as changing from eight axles to six axles) to meet different load requirements. Adaptation to multiple road conditions: Standard leaf spring suspension or air suspension (optional) to enhance shock absorption and protect cargo safety.

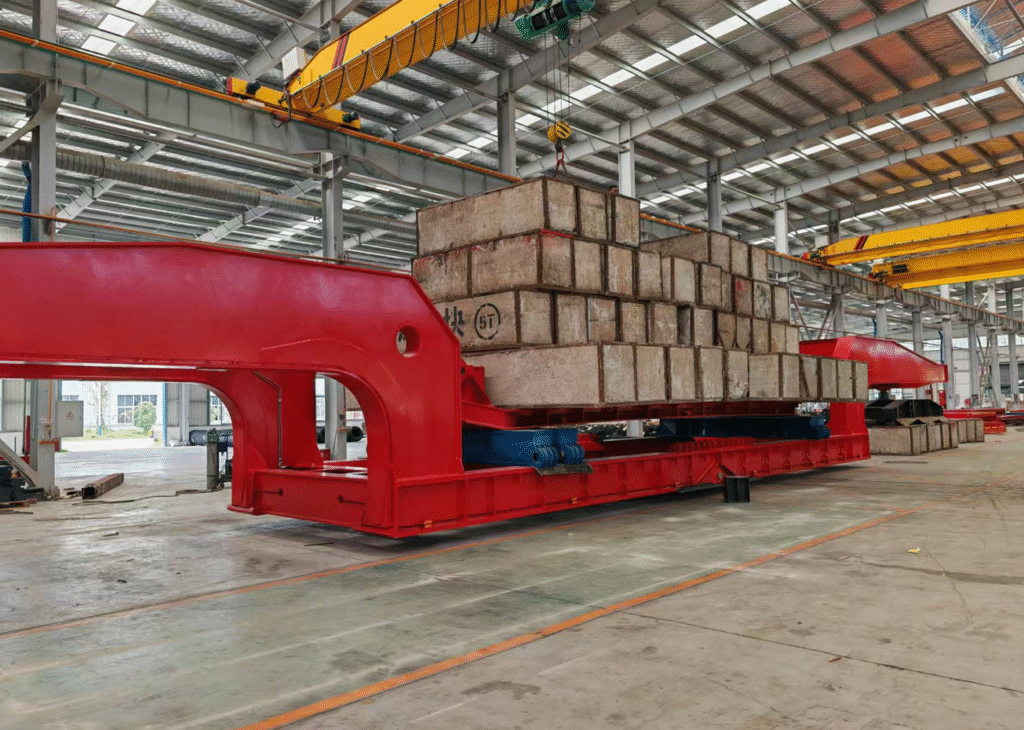

All heavy haul Lowbed trailer will test for carrying capacity after production completed with test stones.
Learn more about Huabang Trailer
Huabang Trailer is a modern vehicle manufacturing enterprise integrating R&D and production of special transport vehicles and equipment. Its R&D and manufactured hydraulic module semi-trailers have reached the domestic leading level and are the benchmark of the industry.
FAQ
What services do we offer?
Huabang has a professional sales and after-sales team, from trailers customization, purchase, transportation to after-sales. Huabang has strict quality requirements for each vehicle. All the vehicles must pass inspection before they are delivered to customers. And then customers can worry-free throughout the process and easily complete procurement and export.
Is it available to print our own brand on the vehicle?
Yes, vehicles can be customized according to customer’s request, and the customer’s brand can be displayed on the vehicle.
How about warranty item?
The warranty is one year.
Enjoy the global after-sales service of well-known brands
How to ship it?
The trailers can be shipped by 20FT container, 40FT container,40FT high container,
open-top container, flatbed container, Ro-Ro ship or bulk
It will according to the size the products.
